ZEPHYR
ZEPHYR
Elite Endurance

Designed to keep you fresh in the saddle for a full day’s competing, this finely poised racer places comfort at the forefront, and delivers exceptional handling and power transfer in the sprint. Suitable for 35-622 (700x35C) tires.



Presets Gallery Frame Geometry Specifications Newsletter

ZEPHYR TITANIUM ROAD BIKE

Elite Endurance

Size XS, S, M, L, XL
From EUR 4,749
The listed prices are recommended retail prices including VAT and excluding the recommended delivery charge of EUR 12.50
Van Nicholas Zephyr Shimano 105 11-spd
Preset: Shimano 105 R7000 Disc 11-spd
Van Nicholas Zephyr Sram Force 1 11-spd
Preset: Sram Force 1 Disc 11-spd
Van Nicholas Zephyr Sram Force 22 11-spd
Preset: Sram Force 22 Disc 11-spd

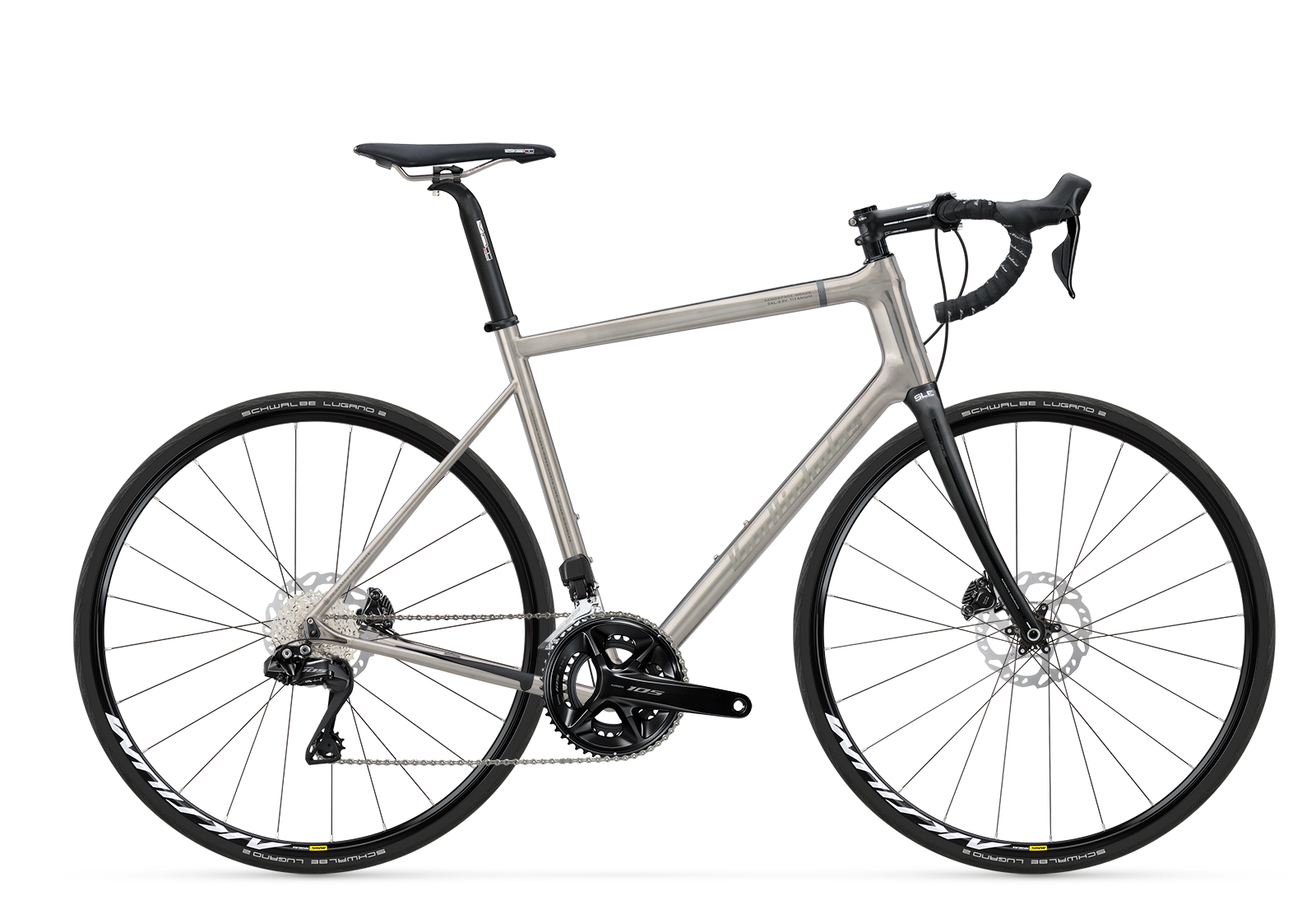

Van Nicholas Zephyr Shimano 105 Di2 12-spd
Preset: Shimano 105 R7150 Di2 Disc 12-spd

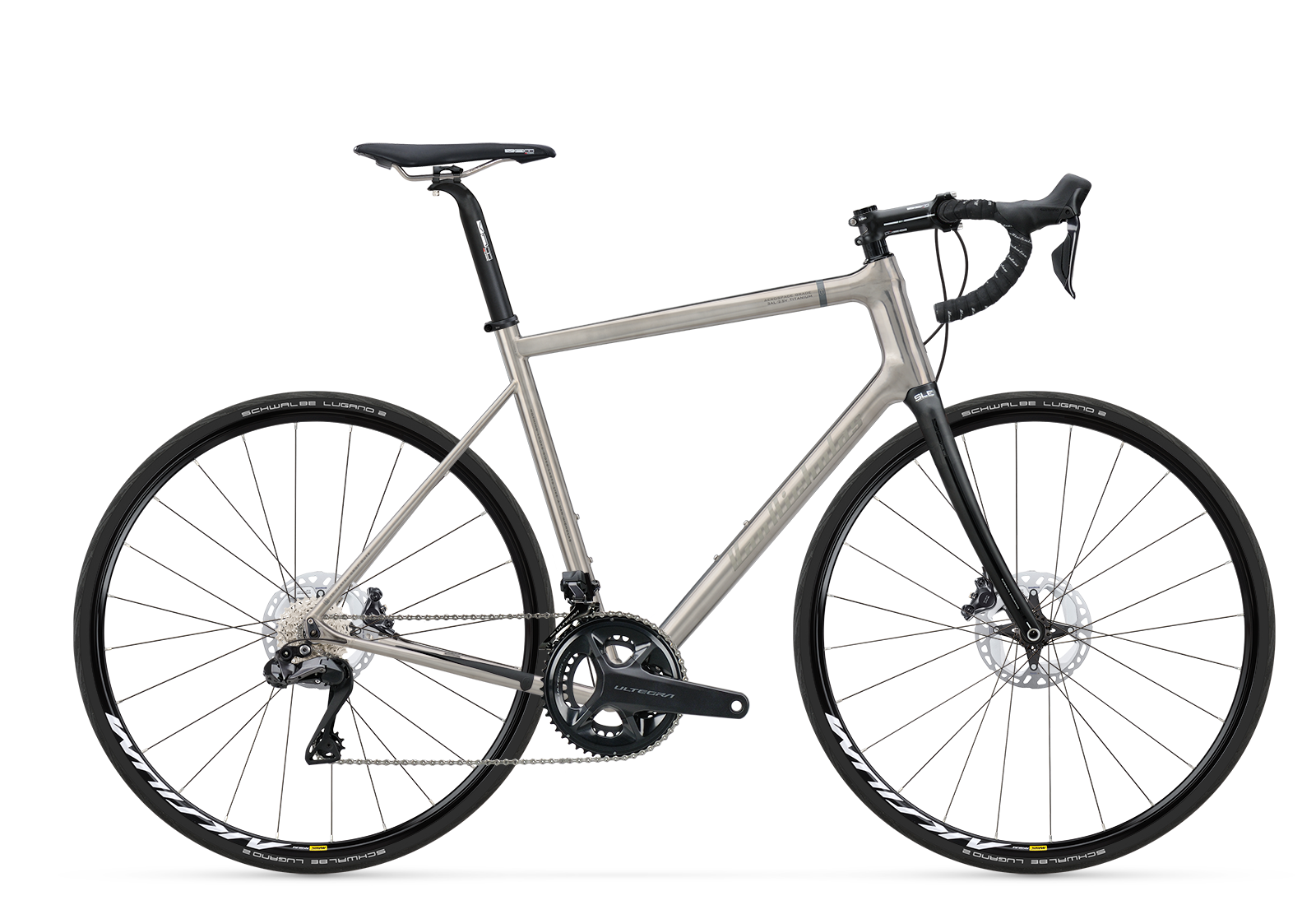

Van Nicholas Zephyr Shimano Ultegra Di2 12-spd
Preset: Shimano Ultegra R8150 Di2 Disc 12-spd

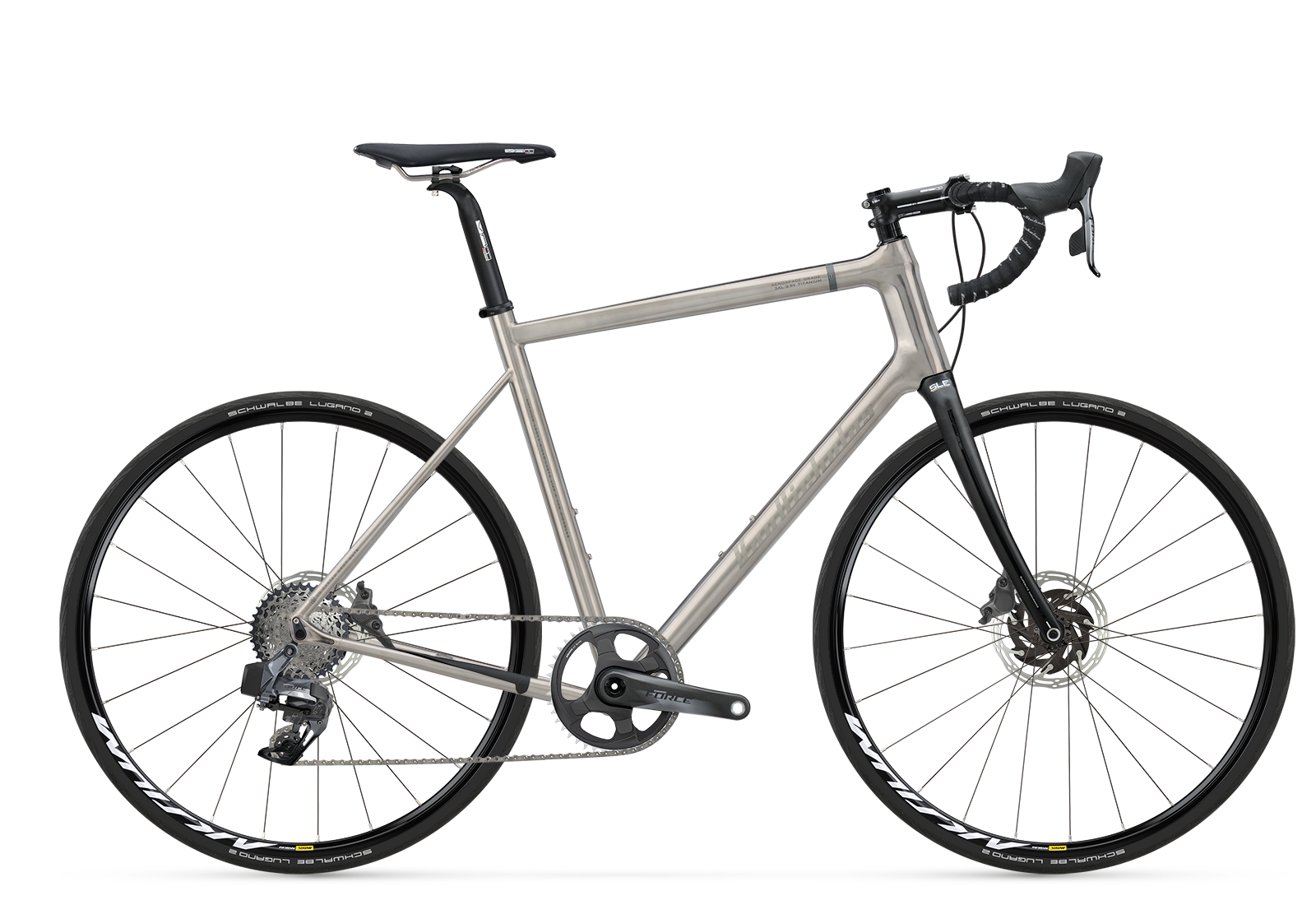

Van Nicholas Zephyr Sram Force eTap AXS 1x12-spd
Preset: Sram Force eTap AXS Disc 1x12-spd

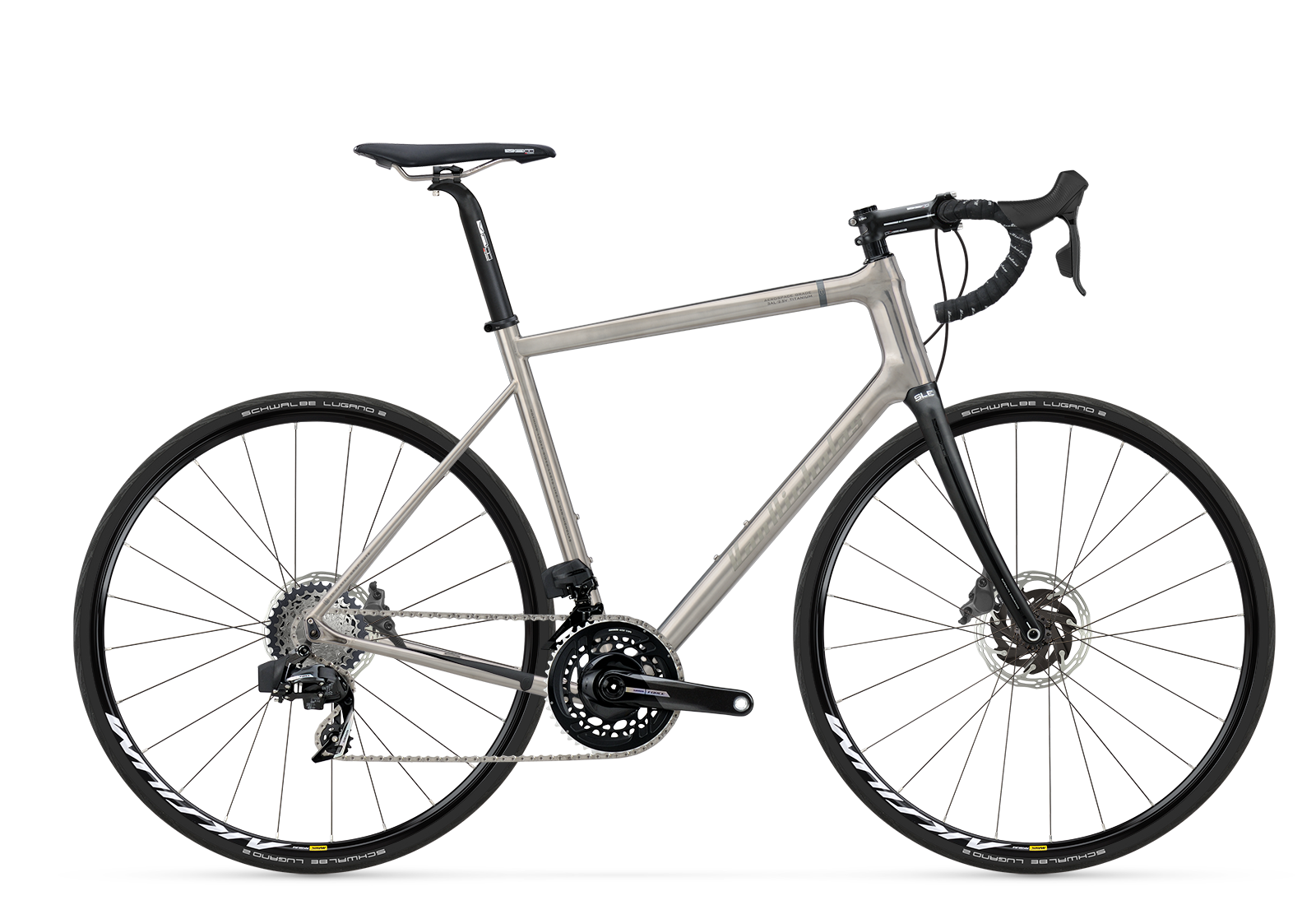

Van Nicholas Zephyr Sram Force eTap AXS 2x12-spd
Preset: Sram Force eTap AXS Disc 2x12-spd

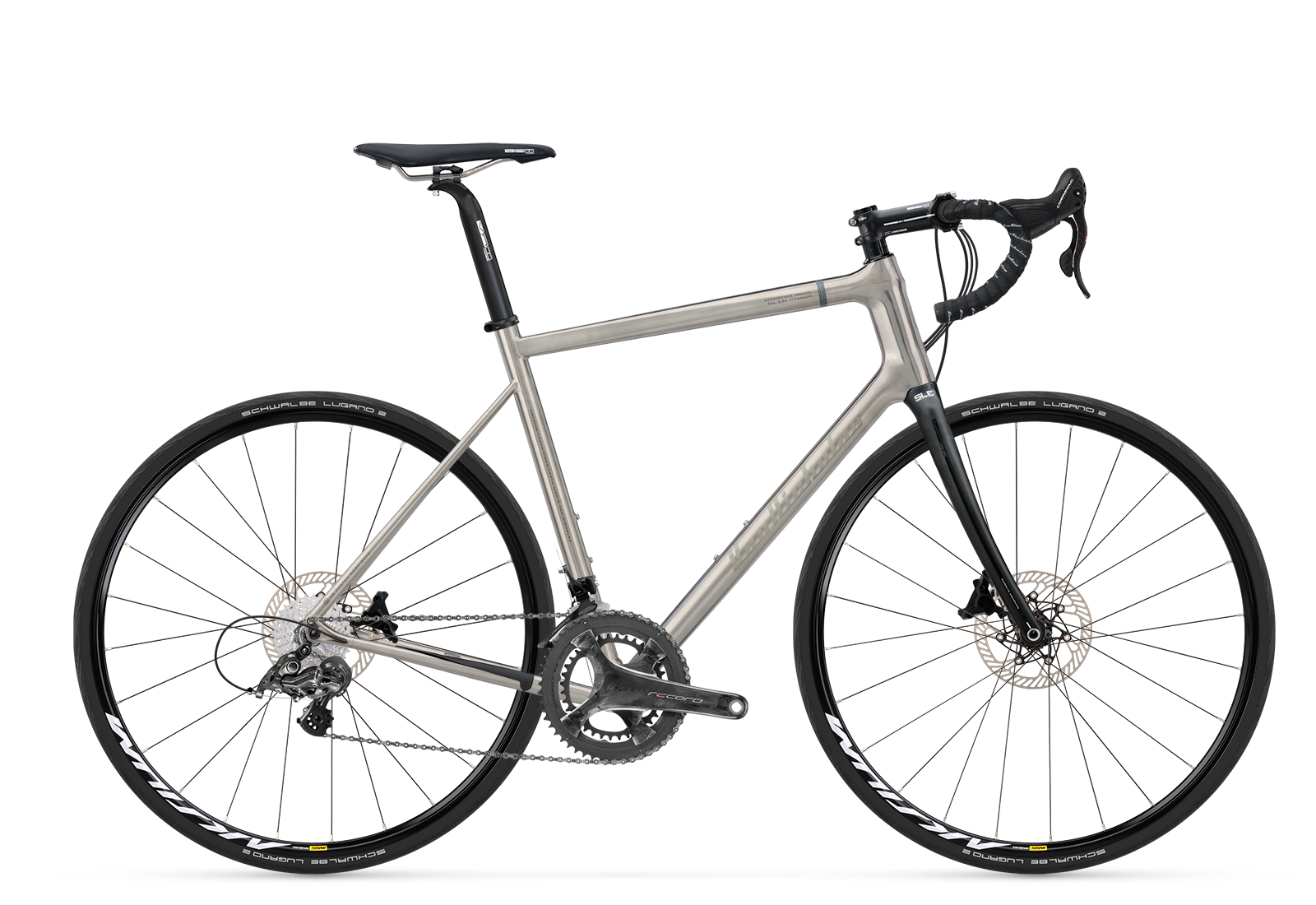

Van Nicholas Zephyr Campagnolo Record 12-spd
Preset: Campagnolo Record Disc 12-spd

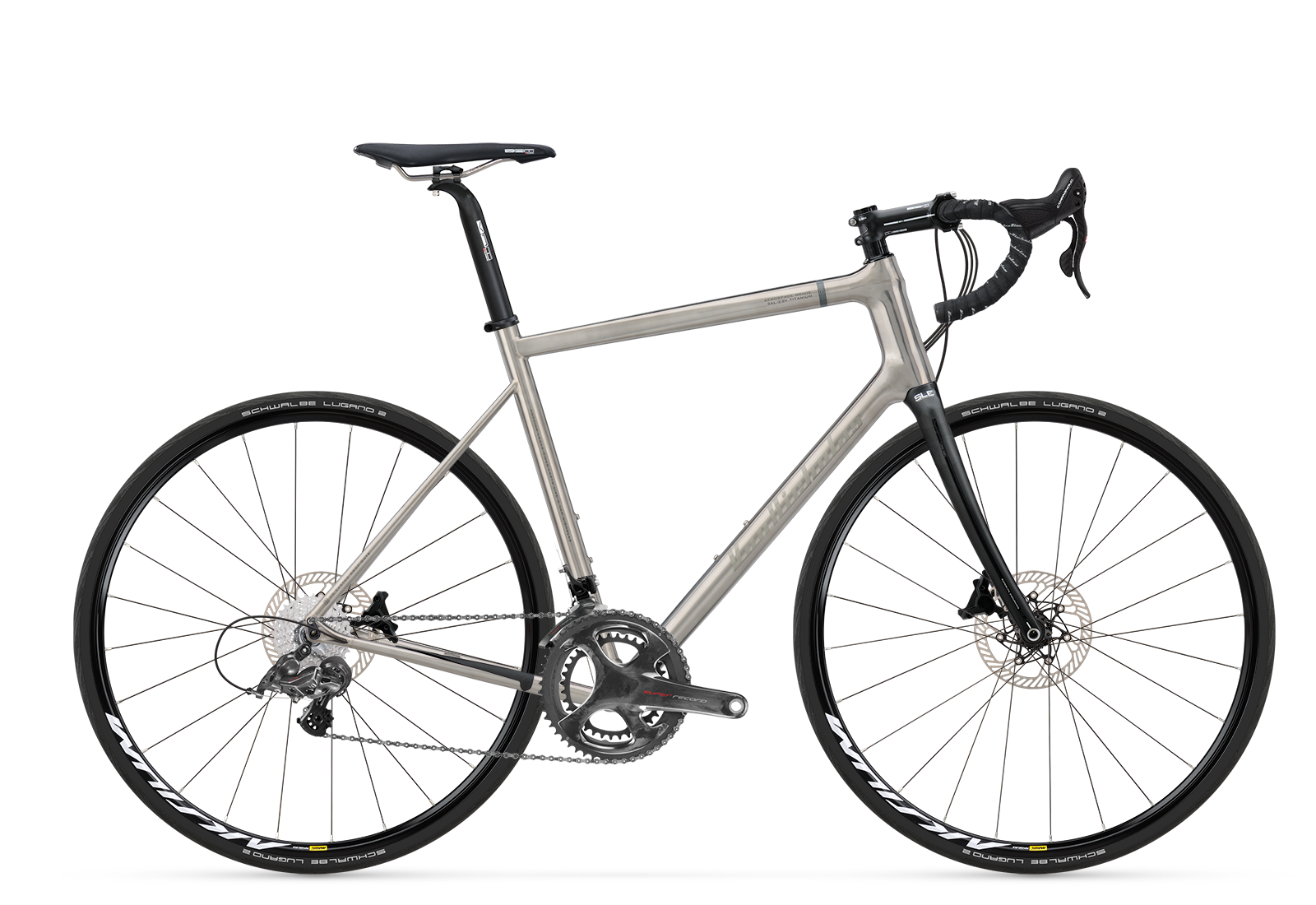

Van Nicholas Zephyr Campagnolo SR 12-spd
Preset: Campagnolo Super Record Disc 12-spd
Van Nicholas Zephyr Shimano Dura-Ace Di2 12-spd
Preset: Shimano Dura-Ace R9250 Di2 Disc 12-spd

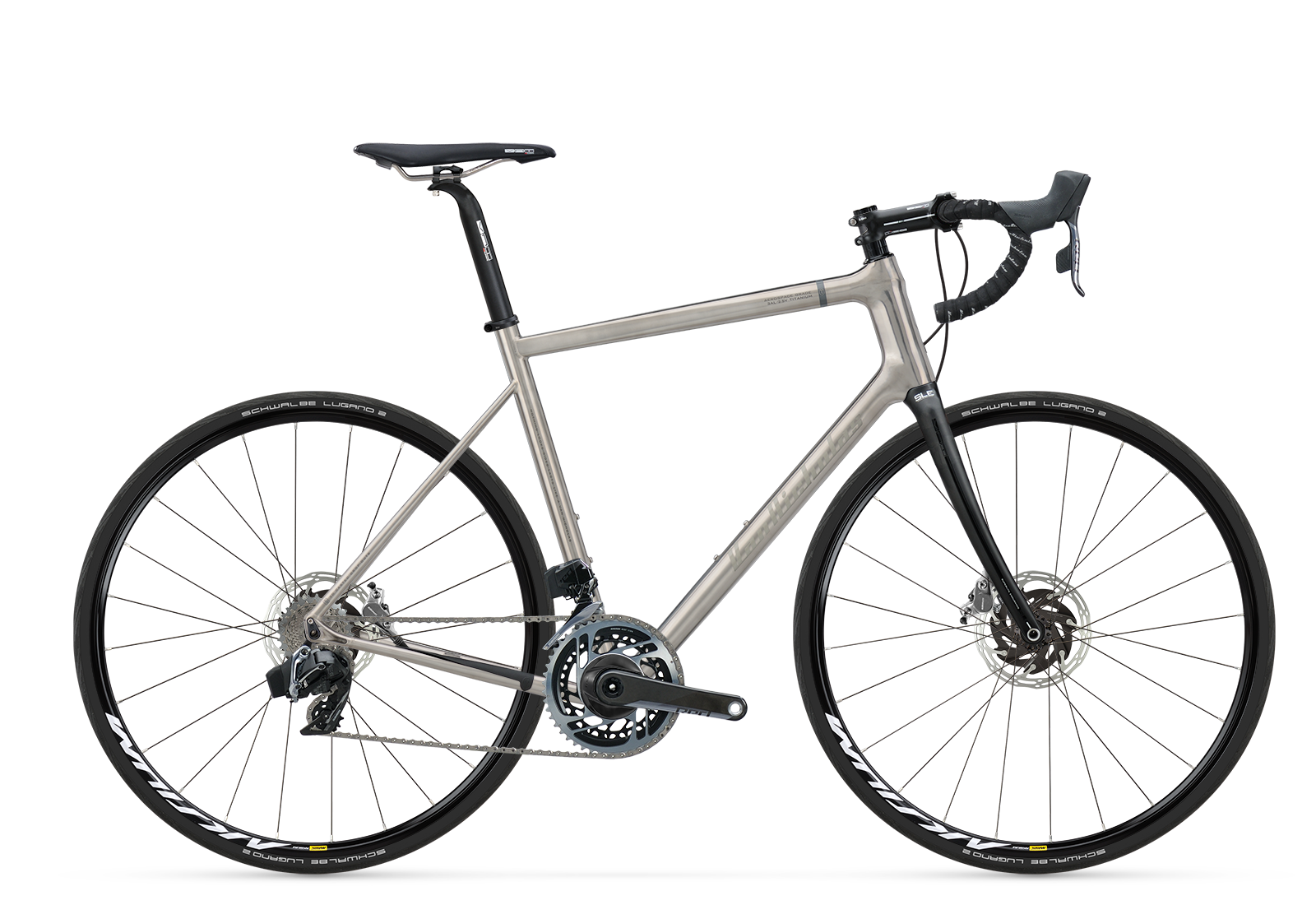

Van Nicholas Zephyr Sram Red eTap 12-spd
Preset: Sram Red eTap AXS Disc 12-spd
Van Nicholas Zephyr Titanium Thumbnail
Van Nicholas Zephyr Titanium Thumbnail
Van Nicholas Zephyr T47 Bottom Bracket
Van Nicholas Zephyr T47 Bottom Bracket
Van Nicholas Zephyr T47 Bottom Bracket
Van Nicholas Zephyr Seat Tube - Seat Stay
Van Nicholas Zephyr Seat Tube - Seat Stay
Van Nicholas Zephyr Seat Tube - Seat Stay
Van Nicholas Zephyr Titanium Engraved Head Tube Logo
Van Nicholas Zephyr Titanium Engraved Head Tube Logo
Van Nicholas Zephyr Titanium Engraved Head Tube Logo
ZEPHYR TITANIUM ROAD BIKE
Elite Endurance
Van Nicholas Zephyr 3Al/2.5V Titanium
Van Nicholas Zephyr 3Al/2.5V Titanium
Geometry
The right size
Van Nicholas Zephyr Titanium Geometry
Effective Frame Size
Seat Tube Length (CTT)
Seat Tube Length (CTC)
Effective Top Tube (Eff TT)
Actual Top Tube (Act TT)
Head Tube Angle (HA)
Seat Tube Angle (SA)
Head Tube Length (HT)
Wheel Base (WB)
Front Center (FC)
Bottom Bracket Drop (BB Dr.)
Chain Stay Length (CS)
Fork Rake (Rake)
Weight Lbs
Weight Kgs
Stack
Reach
Standover
XS
480
450
410
512
495
71
74.5
135
986
573
75
425
43
3.87
1.76
546
361
724
S
510
480
440
521
504
71.5
74
145
986
573
75
425
43
4.01
1.82
556
362
747
M
540
510
470
537
518
72
73.5
165
993
579
75
425
43
4.03
1.83
577
366
771
L
570
540
500
558
537
72.5
72.5
185
998
584
75
425
43
4.19
1.9
598
370
797
XL
600
570
530
576
552
73
72
210
1005
591
75
425
43
4.34
1.97
623
373
822
Buy frame
Specifications
Creating a Van Nicholas
XS, S, M, L, XL
Lifetime Frame Warranty
Engraved head tube
Brushed finish
Hydroformed tubing
3D sculpted dropout
T47 BB
Integrated headset
Internal cable routing
Electronic shifting
Road disc brakes
Thru-axle
My Van Nicholas Designer
Nothing looks, Rides, Lasts like a Van Nicholas
